Locations and environments

Where your agents run, and how to add, connect and switch locations.

A location is where xpander runs your agents. In xpander Chat, the location you are working against is your environment.

Organization	Its locations
Cloud	Only the xpander.ai cloud, which xpander manages
Hybrid	The cloud, plus self-hosted clusters you connect with the Helm chart
air-gapped installation	Only its own clusters. No cloud location.

A location says where the agent’s computer runs. A runtime environment says what is installed on it.

Manage locations

Admins manage locations in Platform > Agents > Runtime, on the Locations tab. Each row shows its type (Managed or Self-hosted), its status (Connected, Checking, Unreachable or Setup incomplete), and which one is the Default (change it with Set as default).

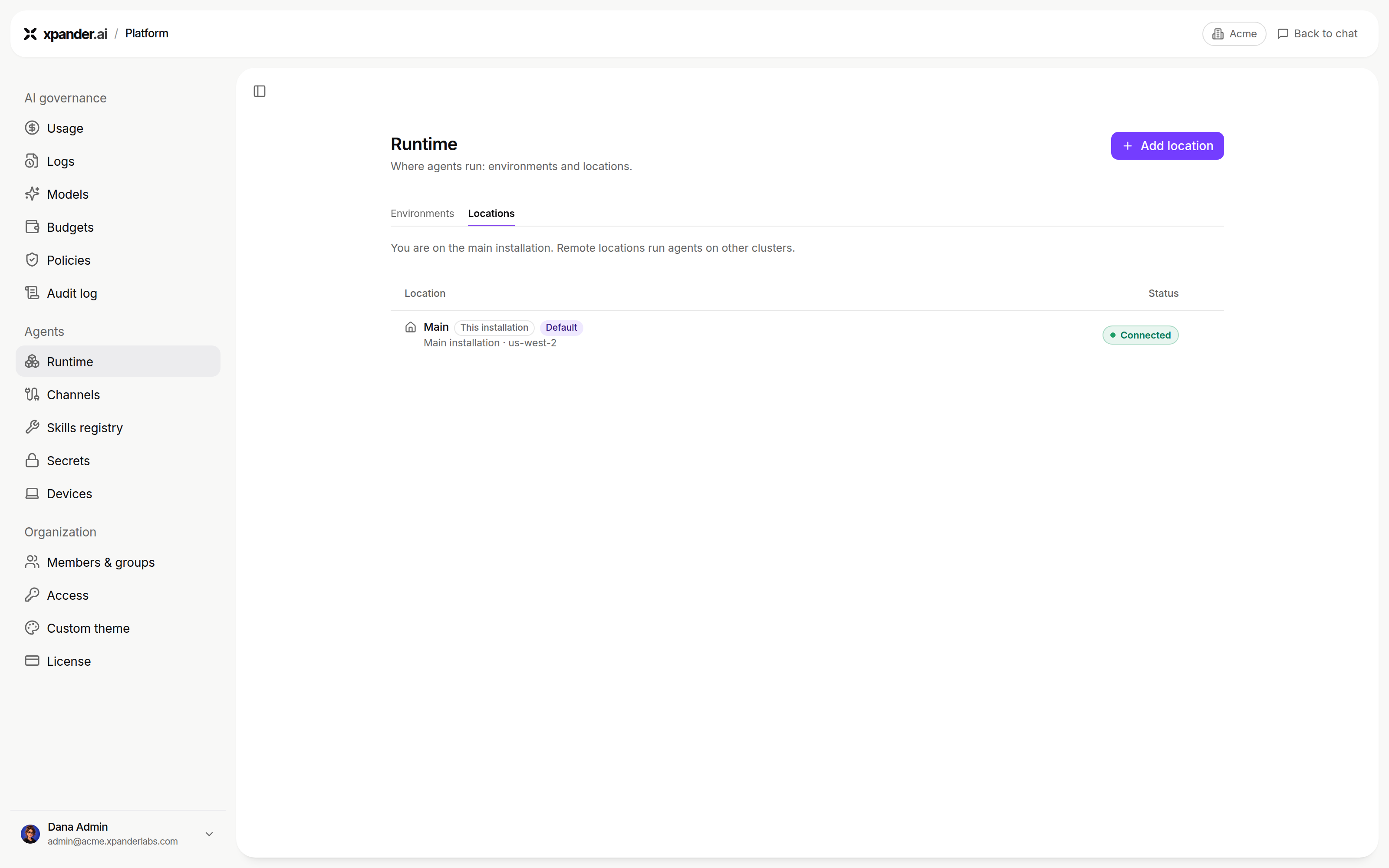

Platform > Agents > Runtime > Locations. Shown with sample data.

Add a location

Add location depends on the organization:

• Cloud organization: you choose Hybrid (data and agents in your cluster, control plane in the xpander.ai cloud) or Air-gapped (everything in your environment, then no cloud location). Self-hosted locations depend on your plan, and the tab says if a plan change is needed.
• Licensed installation (already air-gapped): the dialog is New remote location. It asks only for a Name, an optional Domain, and Use dash subdomains (chat-xpander.acme.com instead of chat.xpander.acme.com). The new cluster joins your installation.

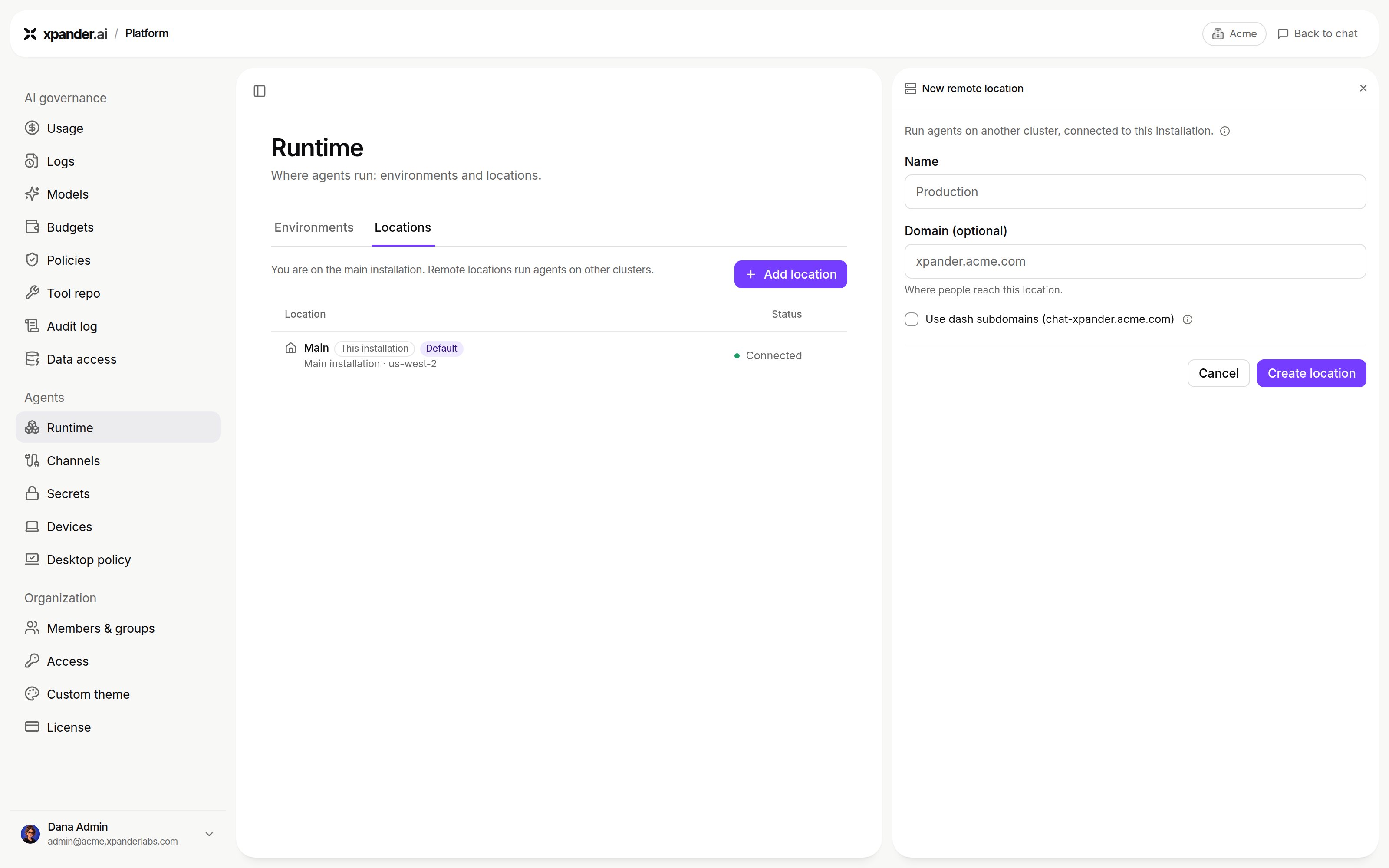

Add location on a licensed installation: New remote location, with a name and an optional domain. Shown with sample data.

1. Create the location

   Create location adds the row as Setup incomplete.

2. Connect the cluster

   The row opens Connect with the system requirements, a one-line installer and a manual Helm install. See Self-hosted, Hybrid and Air-gapped.

3. Wait for it to report in

   The row turns Connected.

Cloud controls and deleting a location

Cloud controls on a self-hosted row decide what that cluster exposes through the xpander.ai cloud:

Control	Exposes
Chat	Talking to its agents through the cloud, including a relay when the cluster can’t be reached directly
Streaming	Execution status and skill calls
Scheduler	Task scheduling from the cloud

Delete location removes it. Agents assigned to it stop running there.

Which location an agent runs in

An agent’s location is set when it is created, with the Environment picker on the New agent form (the default is starred).

Switching environments

With a connected self-hosted location, the profile menu gains an Environments section: xpander.ai cloud (Managed), or Main / This installation on a licensed installation, then each self-hosted location. Your choice sticks across visits. Until you pick, you start in the default location.

Agents work only in their own environment. Opening one from elsewhere shows a notice with a Switch to button.

When a self-hosted environment is not connected

The row reads Not connected, with a hint to check your VPN. Then it depends on the location’s Chat control:

If Chat is	xpander Chat
Allowed	Keeps working through the xpander.ai cloud relay. The file browser is unavailable until you reconnect.
Not allowed	Blocks until you retry, switch environments, or an admin opens the location’s settings

The cloud location in a Hybrid organization

Once a self-hosted location exists, the Locations tab shows an Agents runtime row with the switch “Allow agents to run on the xpander.ai cloud runtime.” Turned off:

• Members work only with agents in your self-hosted locations.
• The cloud leaves the environment switcher and the New agent picker.
• New tasks on cloud agents are blocked, and a link to one asks an admin to re-enable it.

An air-gapped installation never shows this row.

Next steps

Install a self-hosted location

Hybrid or Air-Gapped.

Set up an agent's computer

Runtime environments.
